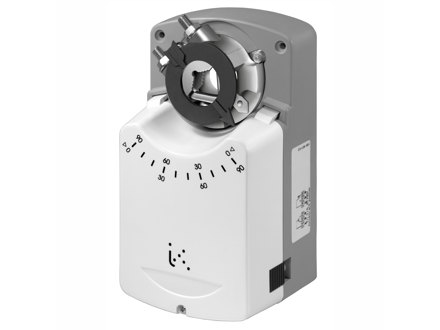

Damper actuators without spring return, 32 Nm

Well-suited for applications with medium or large dampers (8 m2) in ventilation and air handling units.

Specifications
Software & documentation

Articles

(6 st)
  • DAG24 - Regin
    DAG24
    Dimensions, external (WxHxD)
    100x180x67 mm
    Supply voltage
    24 V AC/DC
    Torque
    32 Nm
    Control signal
    2 - 3 point
    Running time, actuator
    160 s
    Auxiliary switch
    No
    Damper shaft, round
    10…20 mm
    Damper shaft, square
    10…16 mm
    Damper shaft, min shaft length
    50 mm
    Max damper size (area)
    8 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    4.0 W
    Power consumption in rest position
    0.5 W
    Power consumption for wire sizing
    4.1 VA
    Angle limitation
    5...85° in 5° steps
  • DAG24S - Regin
    DAG24S
    Dimensions, external (WxHxD)
    100x180x67 mm
    Supply voltage
    24 V AC/DC
    Torque
    32 Nm
    Control signal
    2 - 3 point
    Running time, actuator
    160 s
    Auxiliary switch
    Yes
    Damper shaft, round
    10…20 mm
    Damper shaft, square
    10…16 mm
    Damper shaft, min shaft length
    50 mm
    Max damper size (area)
    8 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    4.0 W
    Power consumption in rest position
    0.5 W
    Power consumption for wire sizing
    4.1 VA
    Angle limitation
    5...85° in 5° steps
  • DAG230 - Regin
    DAG230
    Dimensions, external (WxHxD)
    100x180x67 mm
    Supply voltage
    230 V AC
    Torque
    32 Nm
    Control signal
    2 - 3 point
    Running time, actuator
    160 s
    Auxiliary switch
    No
    Damper shaft, round
    10…20 mm
    Damper shaft, square
    10…16 mm
    Damper shaft, min shaft length
    50 mm
    Max damper size (area)
    8 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    4.8 W
    Power consumption in rest position
    1.2 W
    Power consumption for wire sizing
    4.1 VA
    Angle limitation
    5...85° in 5° steps
  • DAG230S - Regin
    DAG230S
    Dimensions, external (WxHxD)
    100x180x67 mm
    Supply voltage
    230 V AC
    Torque
    32 Nm
    Control signal
    2 - 3 point
    Running time, actuator
    160 s
    Auxiliary switch
    Yes
    Damper shaft, round
    10…20 mm
    Damper shaft, square
    10…16 mm
    Damper shaft, min shaft length
    50 mm
    Max damper size (area)
    8 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    4.8 W
    Power consumption in rest position
    1.2 W
    Power consumption for wire sizing
    4.1 VA
    Angle limitation
    5...85° in 5° steps
  • DMG24 - Regin
    DMG24
    Dimensions, external (WxHxD)
    100x180x67 mm
    Supply voltage
    24 V AC/DC
    Torque
    32 Nm
    Control signal
    Y1: 0(2)...10 V DC
    Feedback signal
    U: 0(2)...10 V DC
    Running time, actuator
    240 s
    Auxiliary switch
    No
    Damper shaft, round
    10…20 mm
    Damper shaft, square
    10…16 mm
    Damper shaft, min shaft length
    50 mm
    Max damper size (area)
    8 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    2.5 W
    Power consumption in rest position
    0.3 W
    Power consumption for wire sizing
    4.1 VA
    Angle limitation
    5...85° in 5° steps
  • DMG24S - Regin
    DMG24S
    Dimensions, external (WxHxD)
    100x180x67 mm
    Supply voltage
    24 V AC/DC
    Torque
    32 Nm
    Control signal
    Y1: 0(2)...10 V DC
    Feedback signal
    U: 0(2)...10 V DC
    Running time, actuator
    240 s
    Auxiliary switch
    Yes
    Damper shaft, round
    10…20 mm
    Damper shaft, square
    10…16 mm
    Damper shaft, min shaft length
    50 mm
    Max damper size (area)
    8 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    2.5 W
    Power consumption in rest position
    0.3 W
    Power consumption for wire sizing
    4.1 VA
    Angle limitation
    5...85° in 5° steps

Specifications

Specifications for Damper actuators without spring return, 32 Nm
Appliance class Class III, Class II
Protection class IP44
Protection class, additional information IP54 with cable glands
Ambient humidity (non-condensing) 5…95 % RH
Weight, incl. packaging 1.1 kg, 1.2 kg
Working angle, rotation 90 °

Software & documentation

Product sheet
