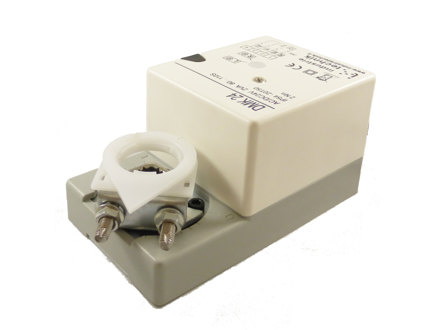

DAK230 Damper actuators without spring return, 2 Nm
Designed for applications with small dampers (0.5 m2) of ventilation and air handling units.
Specifications
| Supply voltage | 230 V AC |
|---|---|
| Power consumption | 4.5 VA (1.5 W - Running) |
| Cable length | 0.9 m |
| Torque | 2 Nm |
| Control signal | 2-, 3-point |
| Auxiliary switch | No |
| Damper shaft, round | 6…16 mm |
| Damper shaft, square | 5…11 mm |
| Damper shaft, min shaft length | 40 mm |
| Running time, actuator (range) | 35...45 s |
| Appliance class | Class II |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 5…95 % RH |
| Weight, incl. packaging | 0.6 kg |
| Working angle, rotation | 95 ° |
| Max damper size (area) | 0.5 m² |
| Frequency | 50...60 Hz |
